stepsweep_stimulus vi

· Generate step sweep with or without head signal. Provide duration, frequency array, data num array, and head length info needed for analysis process

Input:

Signal config (Cluster):

Calibration (Cluster): soundcard & amp calibration value to adjust  waveform amplitude

Output:

Waveform out (waveform)

numArray (Double Array): number of data for each frequency point

freqArray (Double Array): freq table that is used to generate step sweep

duration (double): stimulus duration

headlength (double): data length info for head tone

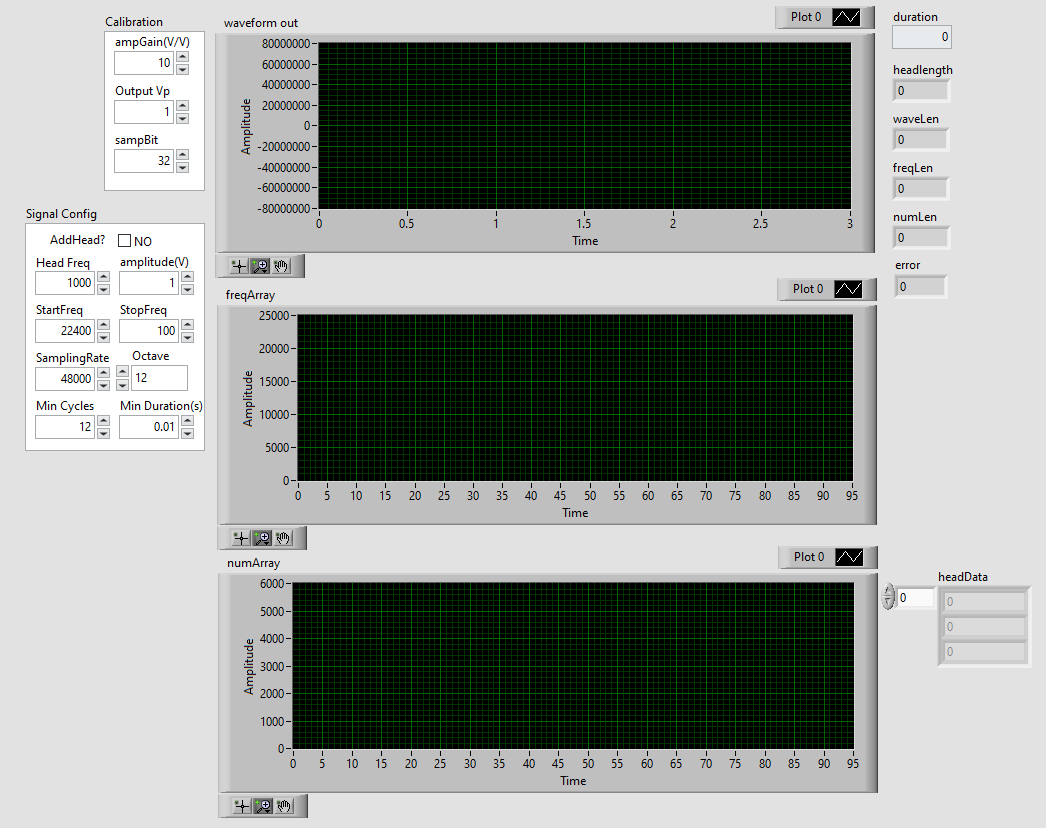

Front Panel :
